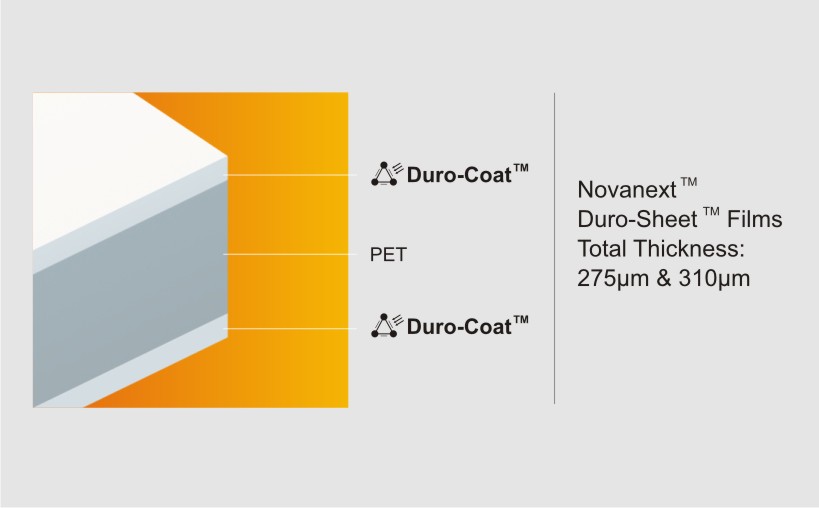

DS-TPD
Storage Methods : Storage to avoid direct sunlight, moisture in and keep packing condition;
Storage Period : Room temperature in ambient humidity, (23±10℃，55±15%RH）12 Months/12
Packaging :
- 200m X 11 Rolls
- 400m X 4 Rolls
- 600m X 4 Rolls
| Item | Units | Value | Standard | |
| Product Thickness | um | 315±5% | GB/T 13541-92 | |
| Tensile Strength（MD/TD) | MPa | MD ≥ 100、TD ≥ 100 | ISO 527.3 | |
| Elongation of Break（MD/TD) | % | MD ≥ 100、TD ≥ 100 | ISO 527.3 | |
| Heat Shrinkage (MD/TD) 150℃*30min | % | MD ≤ 1、TD ≤ 0.5 | IEC 62788-1-5 | |
| Peel Strength | N/cm | ≥ 5 | ISO 8510-2 : 2006 | |
| BS/EVA Peel Strength | N/cm | ≥ 70 | ISO 8510-2 : 2006 | |
| Inner Layer Reflectivity | % | ≥ 90 | ISO 9050 : 2003 | |
| Sand Drop Resistance | L | ≥ 110 | ASTM D968 | |
| Water Vapour Transmission 38℃ 90%RH (IR) | g.m2 /day | ≤ 1.8 | ISO15106-3 | |
| SI Cohesiveness | − | Well | 15Kg/3min | |
| Breakdown Voltage | KV |
≥ 20 | IEC 62788-2 : 2017 | |
| Partial Discharge | VDC | ≥ 1500 | IEC 62788-2 : 2017 | |
| DH Test (1000H) | Yellow Index |
– | ≤ 2 | IEC 62788-2 : 2017 |
| PVDF/PET Peel Strength/PVDF/PET | N/cm | ≥ 3.5 | IEC 62788-2 : 2017 | |
| Elongation of Break | % | ≥ 50 | IEC 62788-2 : 2017 | |
| UV Test (2000H) | Yellow Index |
– | ≤ 2 | IEC 62788-2 : 2017 |
| PVDF/PET Peel Strength/PVDF/PET | N/cm | ≥ 3.5 | IEC 62788-2 : 2017 | |
| Elongation of Break | % | ≥ 50 | IEC 62788-2 : 2017 | |
| Thermocycling Test (200 Times) | Yellow Index |
– | ≤ 2 | IEC 62788-2 : 2017 |
| PVDF/PET Peel Strength/PVDF/PET | N/cm | ≥ 3.5 | IEC 62788-2 : 2017 | |
| Elongation of Break | % | ≥ 50 | IEC 62788-2 : 2017 | |
| Humidity-Freeze Test (10 Times) | Yellow Index | – | ≤ 2 | IEC 62788-2 : 2017 |
| PVDF/PET Peel Strength/PVDF/PET | N/cm | ≥ 3.5 | IEC 62788-2 : 2017 | |
| Elongation of Break | % | ≥ 50 | IEC 62788-2 : 2017 | |
Available Colors:
White
Black
Transparent
